Rectangular Aperture Series For Busbars

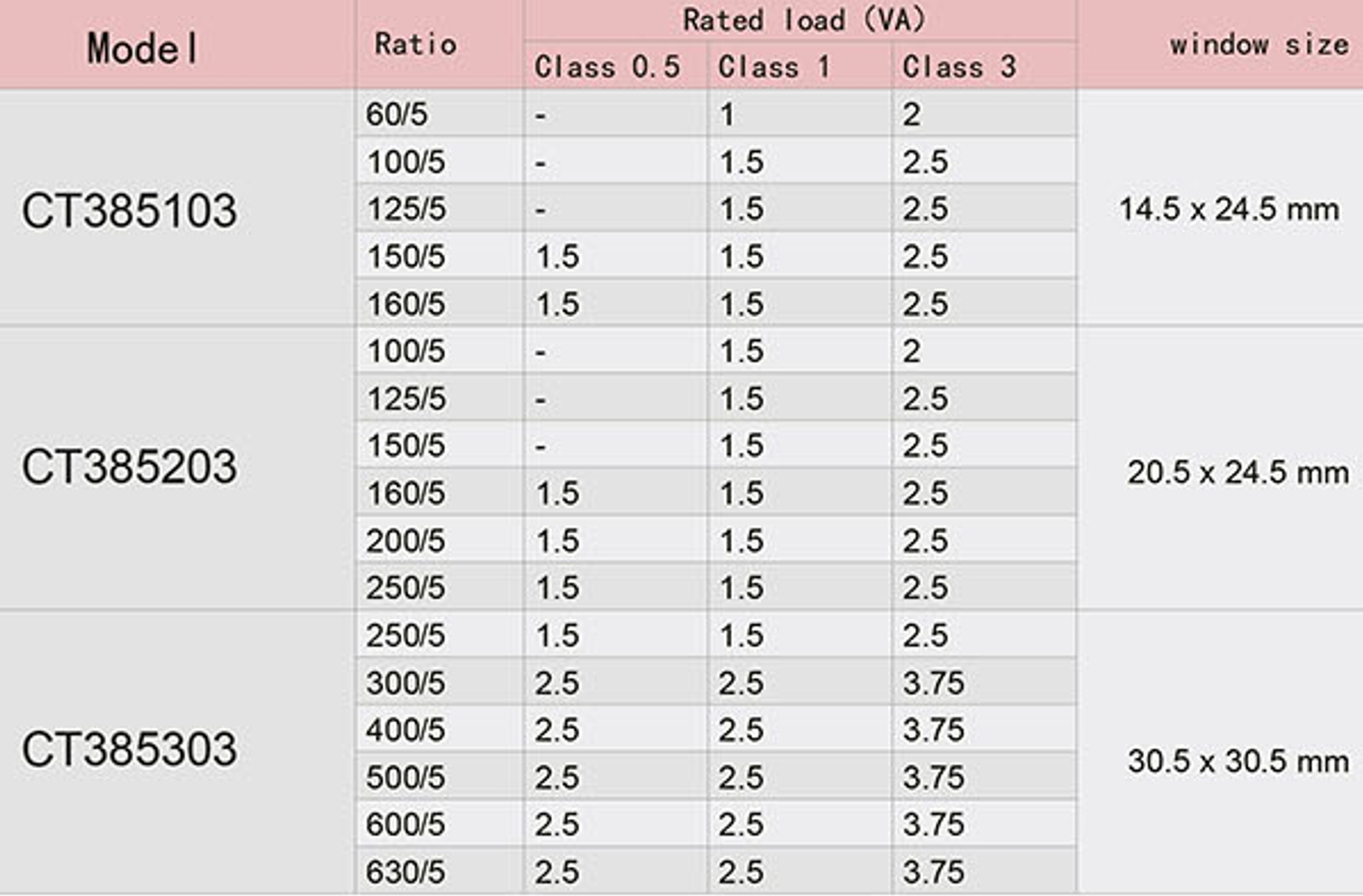

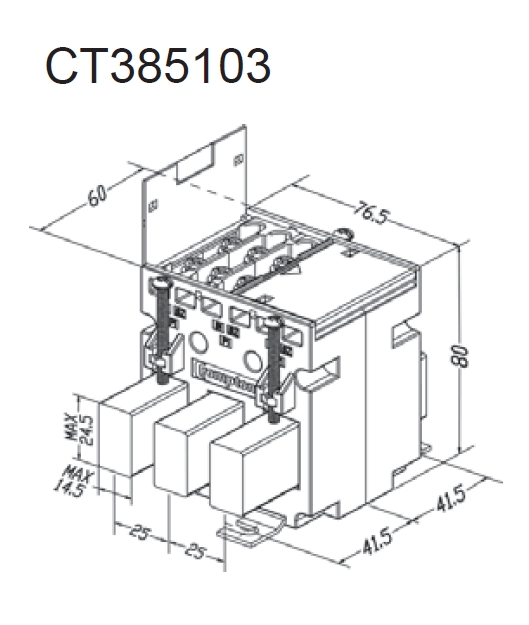

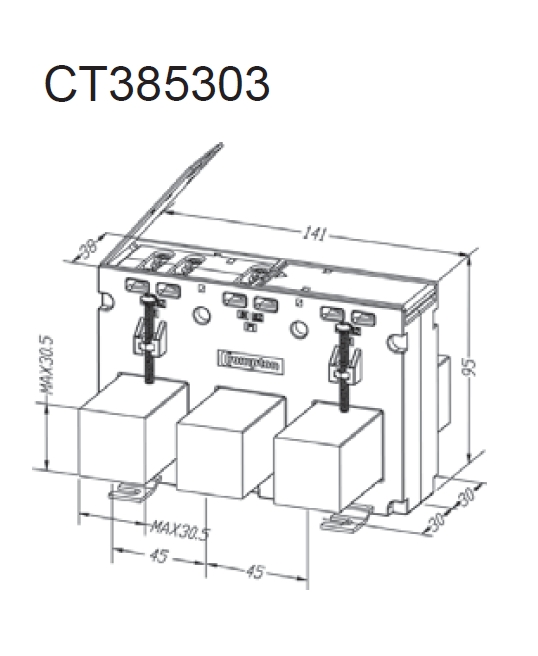

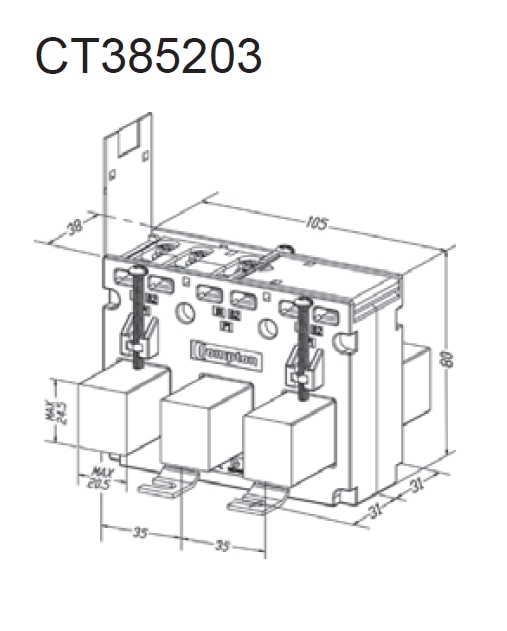

CT385

This series of three-phase current transformers are mainly used in copper busbar circuits and cable circuits to convert the current of the circuit being tested. The perforation size, the spacing between the through-holes and the size of the circuit breaker match the size of the circuit breaker, and can be installed in the circuit at the lower end of the circuit breaker.

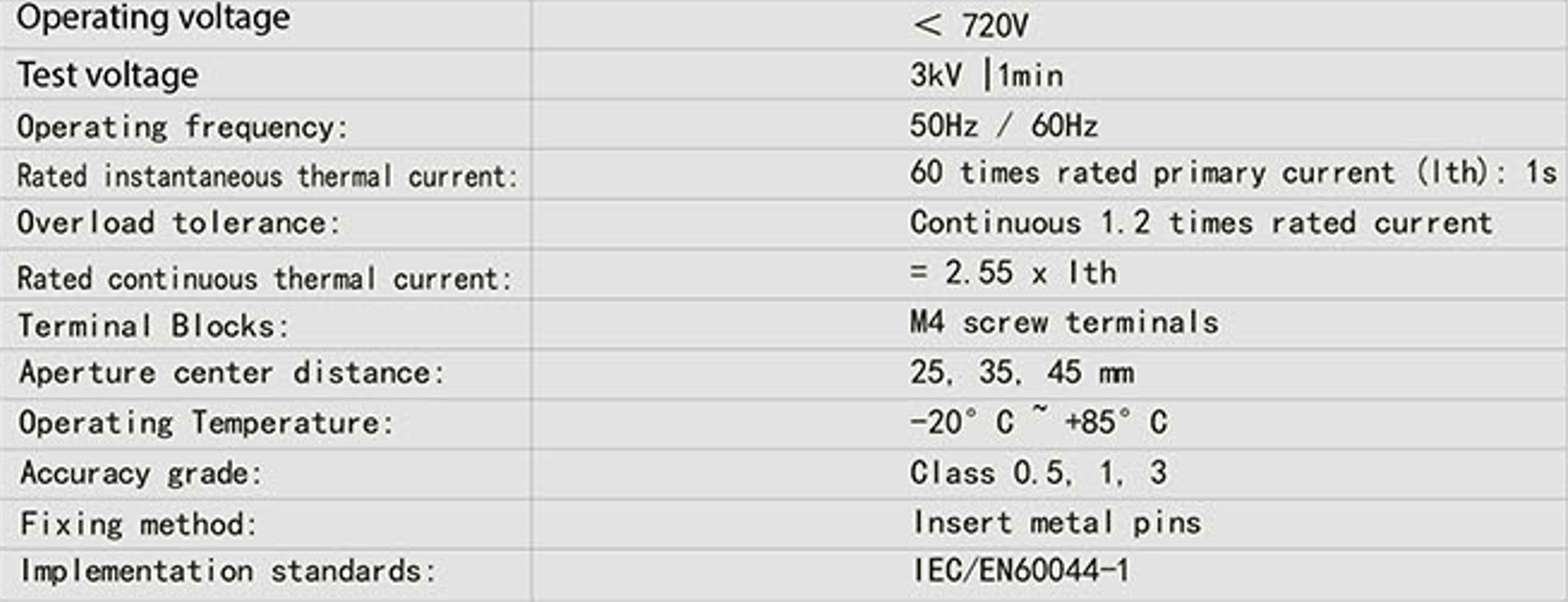

The secondary signal output of the transformer can be 5A, 1A, mA level current signal or voltage signal. It can be flexibly changed according to the design. The output mode is a crimping terminal. When a weak current signal or voltage signal is output, the overload can reach more than 10 times, and the maximum overload can be 20 times.
